Preface: Users typically build custom PMU firmware tailored to their specific hardware platform and application requirements.
PMU firmware can be loaded by either FSBL or CSU BootROM (CBR). Both these flows are supported by AMD. Loading PMU firmware using FSBL has the following benefits:
– Possible quick boot time, when PMU firmware is loaded after bitstream.
– In use cases where you want two BIN files – stable and upgradable, PMU firmware can be part of the upgradable (by FSBL) image.
Background: The primary design objective of AMD’s Zynq™ UltraScale+™ devices is to provide a highly integrated platform that combines the processing power of a multi-core ARM processor with the flexibility of programmable logic (FPGA fabric). This enables a wide range of applications by offering both real-time control and processing capabilities within a single chip. The devices also prioritize low power consumption, security features, and efficient memory management.
Ref: Arm Trusted Firmware (ATF) and its role in managing the Secure Monitor and Trusted Board Boot Requirements (TBBR). These are essential for establishing a secure boot process and managing transitions between the secure and non-secure worlds in Arm-based systems like the Zynq UltraScale+.

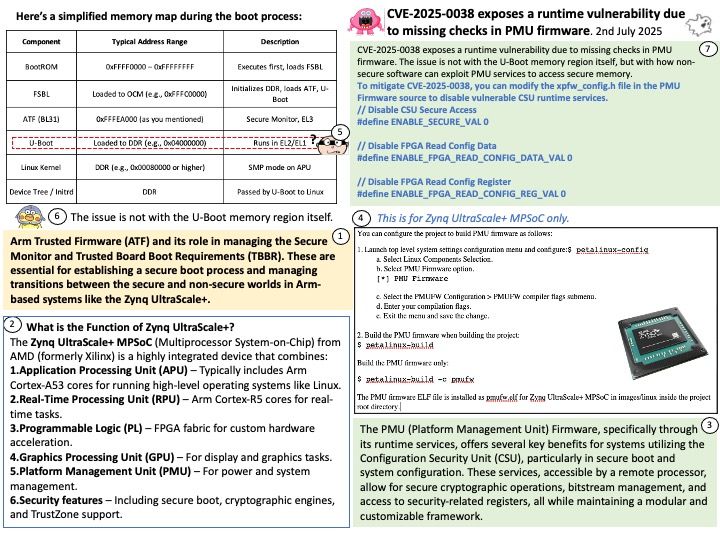

Vulnerability details: In AMD Zynq UltraScale+ devices, the lack of address validation when executing CSU runtime services through the PMU Firmware can allow access to isolated or protected memory spaces resulting in the loss of integrity and confidentiality.
Official announcement: Please see the link for details –
https://www.amd.com/en/resources/product-security/bulletin/amd-sb-8008.html
